Description
UNIVERSAL DESIGN - FITS ALL 72V GOLF CARTS
- Made in the USA
- 10 Year Warranty
- Universal Design, Complete system for a 72V golf cart

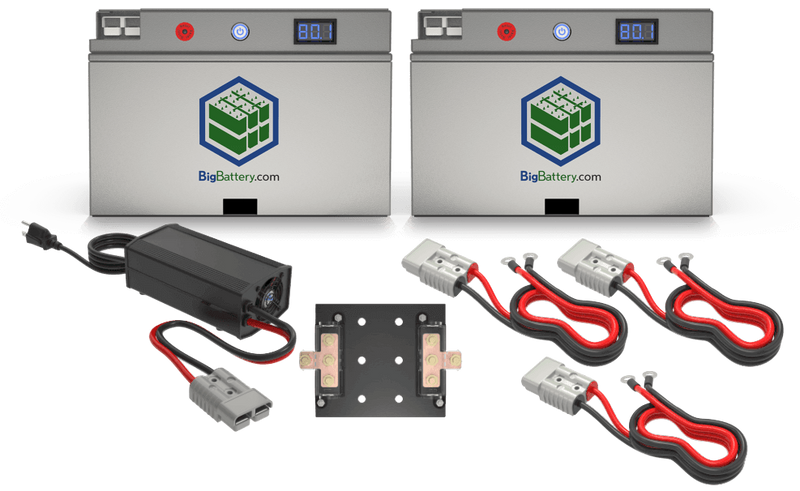

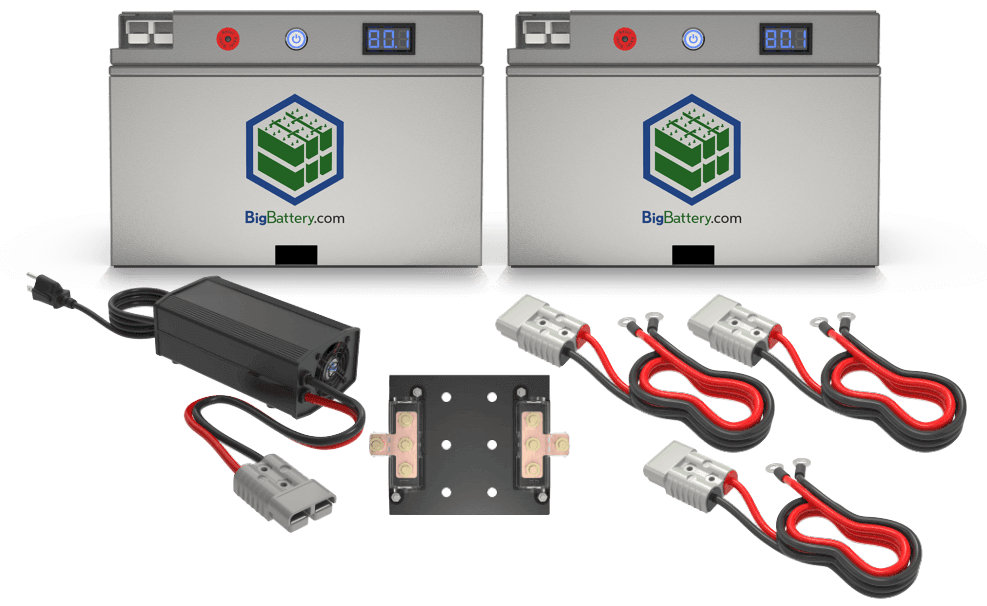

What's Included with this Kit:

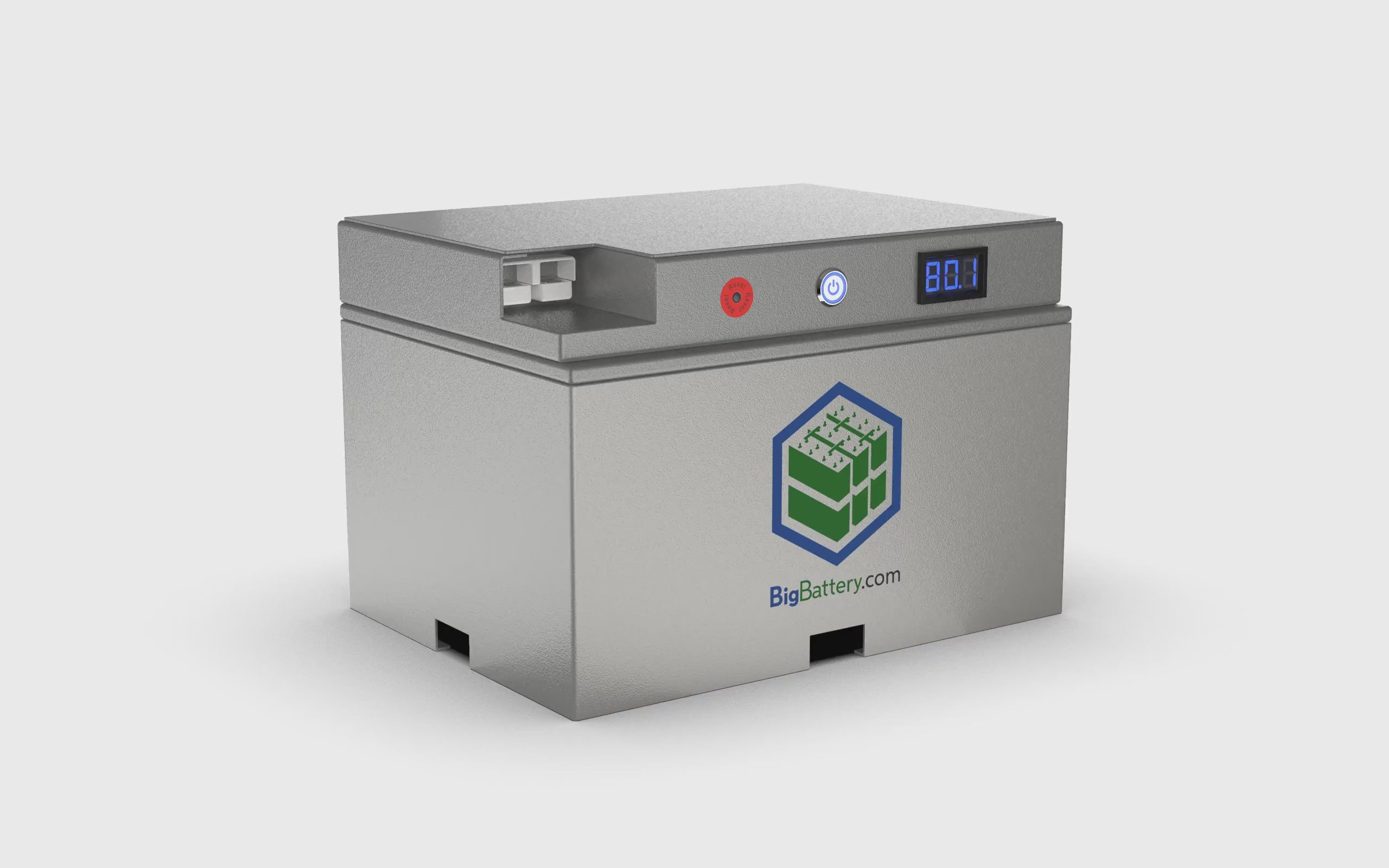

- (2) - 72V FALCON 28Ah Batteries - Total 56Ah

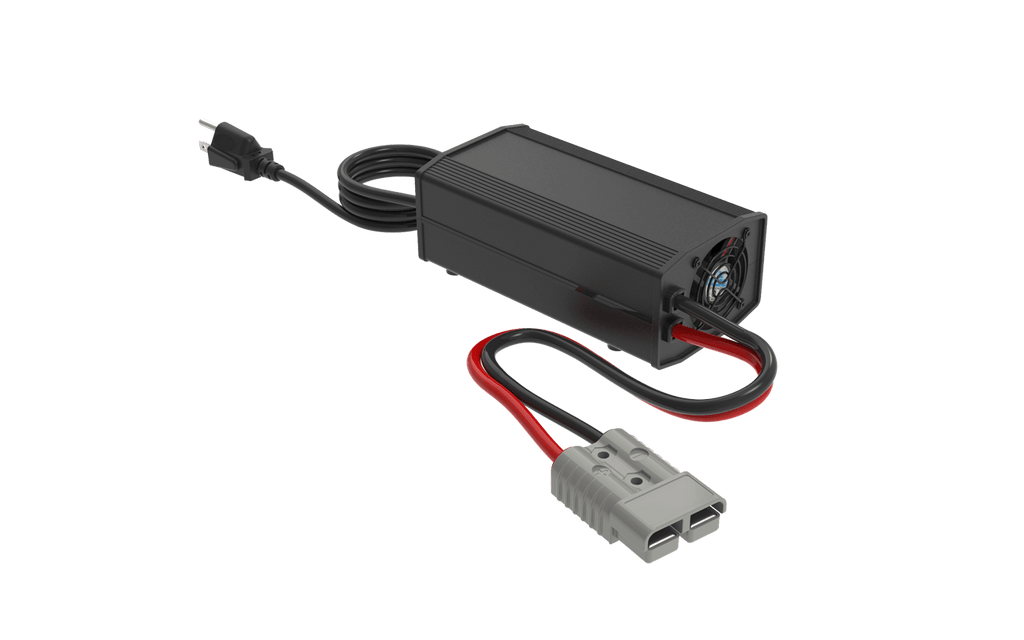

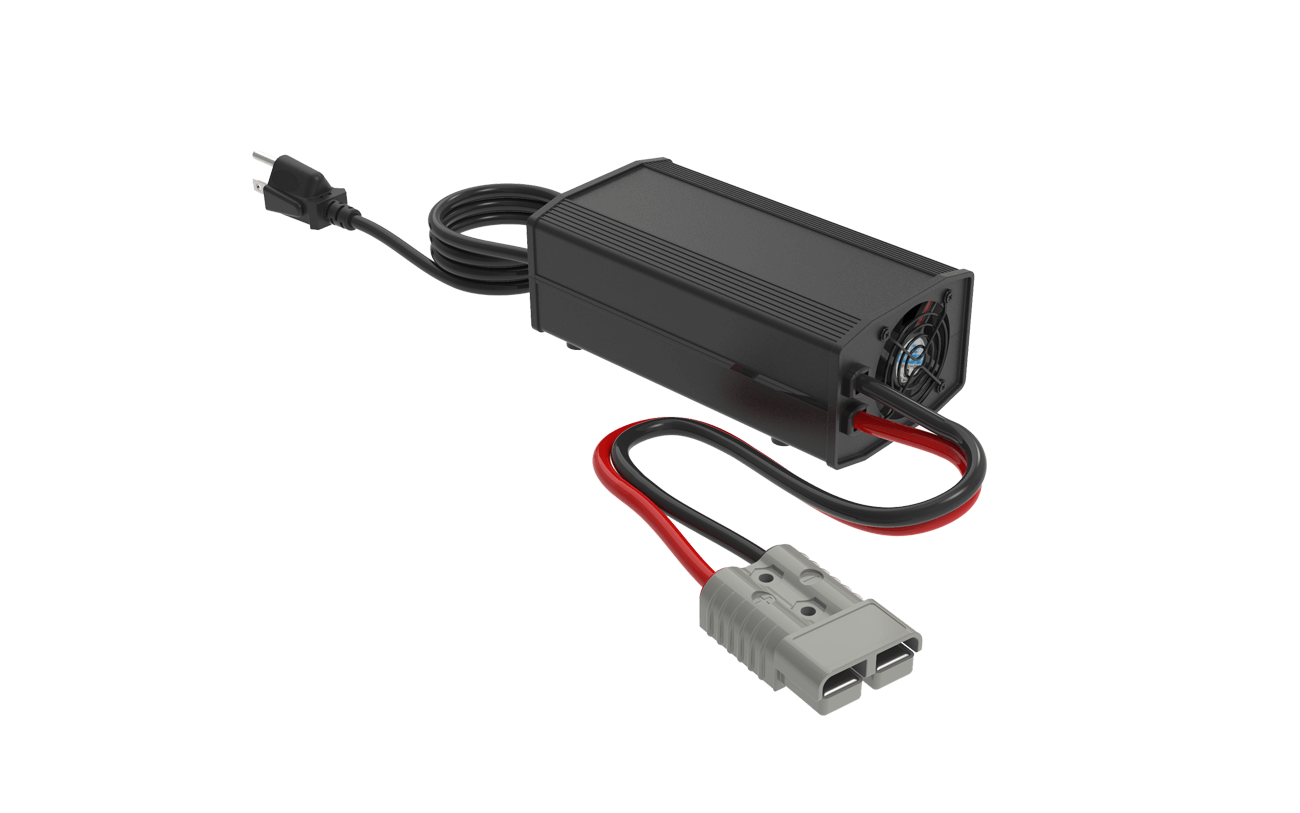

- 72V Battery Charger
- (1) BB175 to Ring Terminals Cable
-
(1) 175 to (2) 50 Parallel Cable
Safety Features:
- BMS (Battery Management System)
- Over Voltage
- Under Voltage
- Over-Current
- (Thermal Management System)
- Safety Fuse (300A)
Specifications:
| Manufacturer | BigBattery |
| Model | 72V FALCN |
| Chemistry |
LiFePO4 |
| Configuration |
24S |
| Nominal Capacity | 56Ah |
| Continuous Discharge | 160A |
| Maximum Discharge | 360A (6 s) |
| Nominal Voltage | 72.0V |
| Max Voltage | 84.0V |
| Min Voltage | 68.0V |
| Protected | Yes |
| Rechargeable | Yes |
| Approx. Dimensions (L*W*H) |
14.0 x 10.4 x 9.5 Inches per battery (x2) |
| Approx. Weight | 120lbs |
| Country of Origin | USA |
| Cycle Life |
(10 Year Warranty) |
COMPARE 72V LITHIUM GOLF CART BATTERIES
Capacity = Runtime. There can be many factors that correlate to how many miles you will get from your battery but in general a higher capacity will equate to longer run times.
Max Continuous Discharge = The max power your battery can output on a continuous basis for the duration of the cycle. If you use your golf cart for long but steady higher speed drives, a higher max continuous discharge is recommended. For a stop and go GOLF outing, a lower discharge is likely to be sufficient.
*Attempting to run your battery at higher than rated discharge levels will cause the battery management system to go into timeout mode to prevent damage to the battery cells. This will cause it to shutdown completely for a period of time.
Max Pulse Discharge = This is for those instances when you might need a little extra power like going up a steep incline.
BigBattery Lithium Golf Cart Kits
Made in the USA - 10 Year Warranty
Huge Power Capabilities, never get stuck on hills with a safety cooldown.
RoyPow Lithium Golf Cart Kits
Made in China - 5 Year Warranty
Automotive Grade Build Quality
