Epoch Batteries - Lithium Golf Cart Kits
Made in the USA - 11 Year Warranty
Module Design - Same exact size as a Trojan T-105
Huge Power Capabilities - Never get stuck on hills with a BMS safety cooldown.
Bluetooth App - iOS + Android
Description
RoyPow 48V 100AH Lithium Golf Cart Battery System
-
Model # S51105
CALL US at 1-800-547-3050 if you have any questions or would like help deciding which battery will fit your cart!
RoyPow is the most trusted brand for upgrading your lead acid batteries to a maintenance free, easy to install and powerful lithium golf cart.

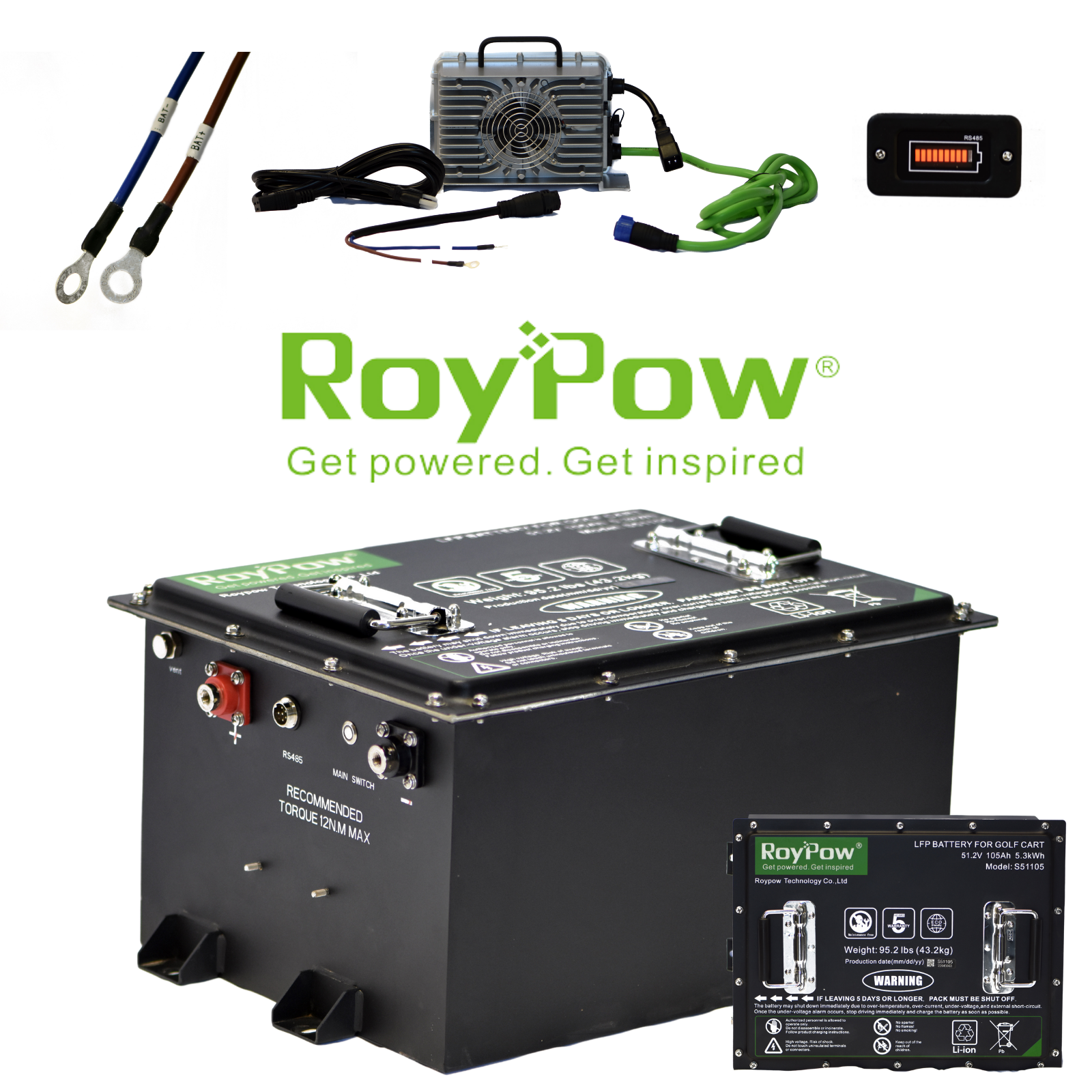

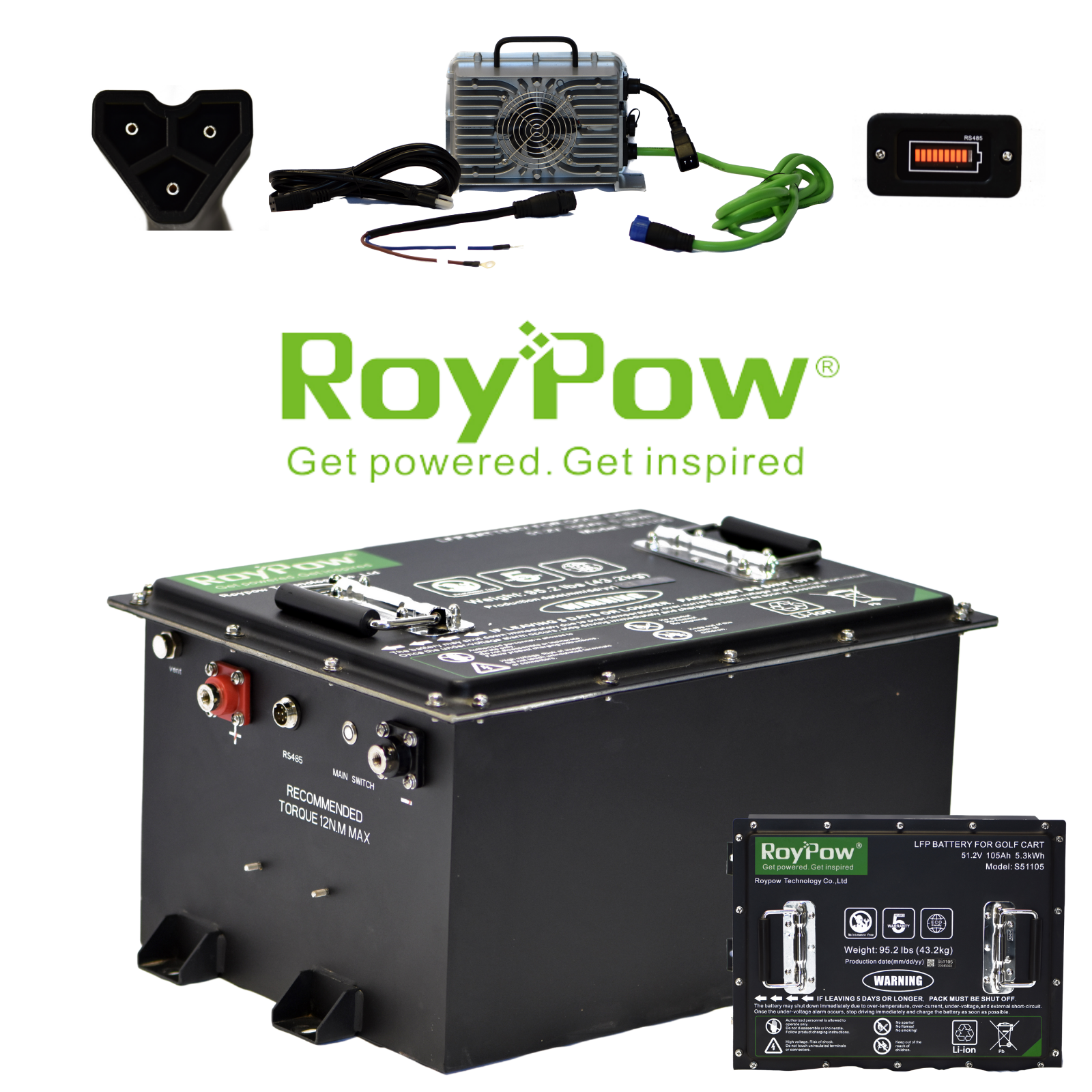

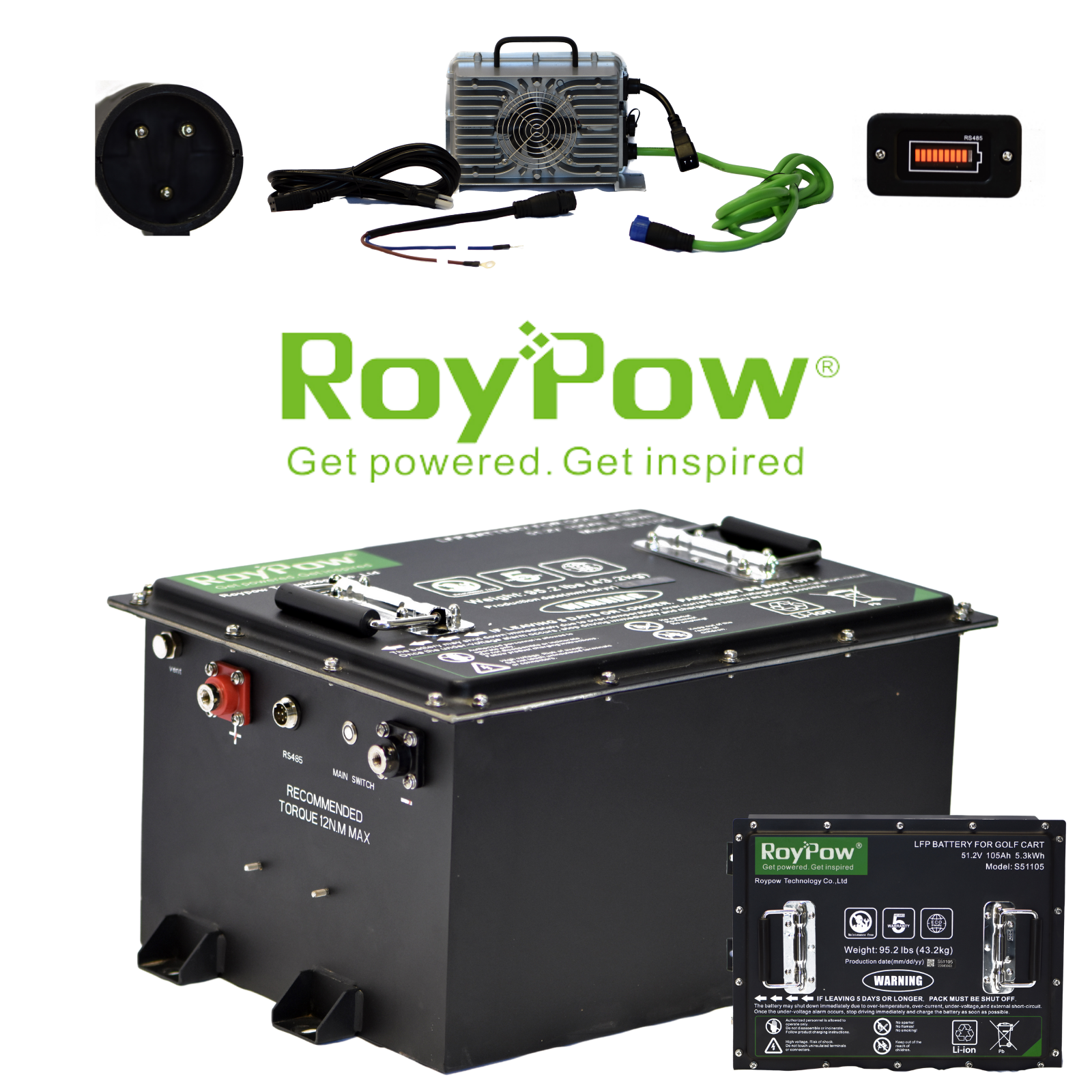

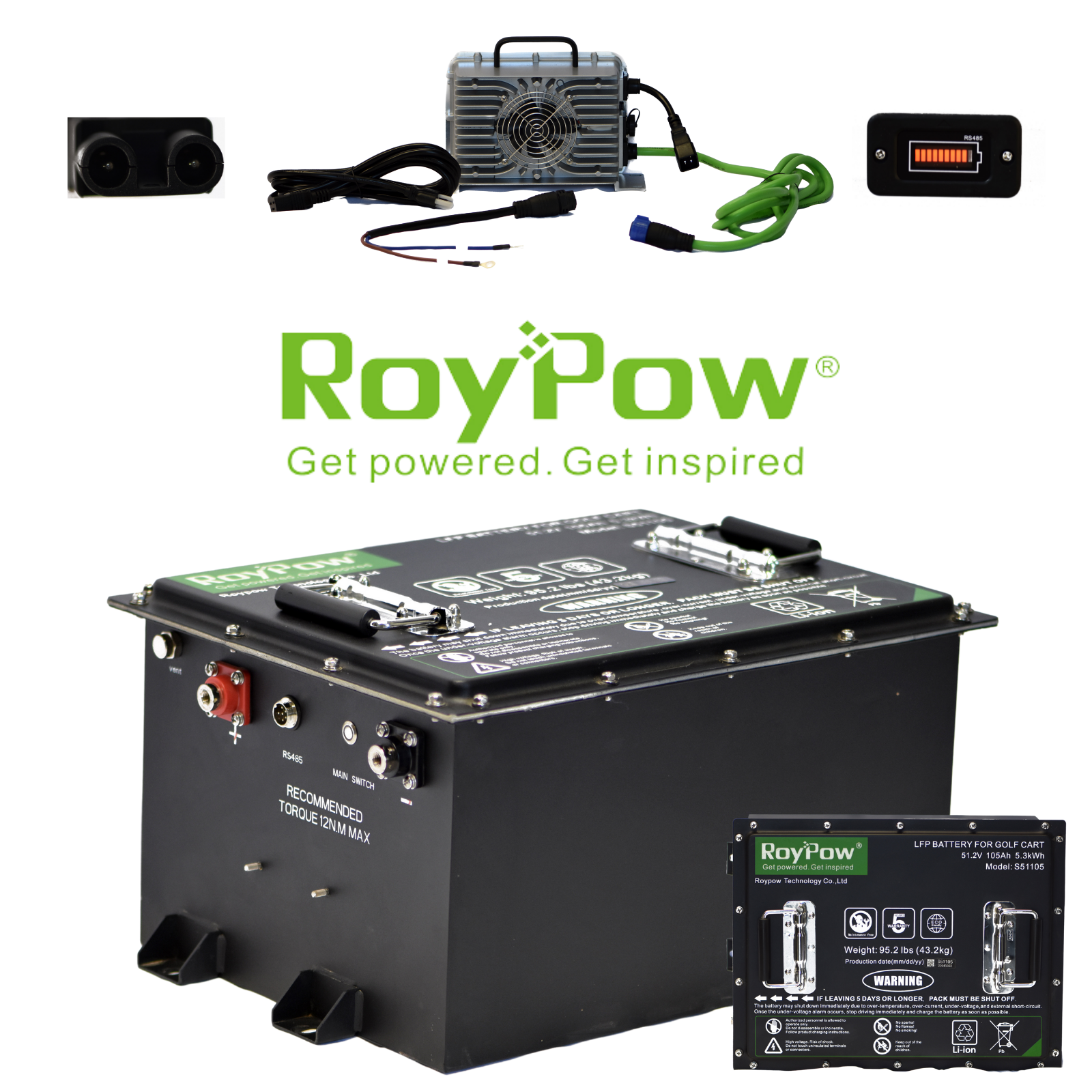

The complete setup kit is included:
(1) 48V 100AH RoyPow Lithium Battery

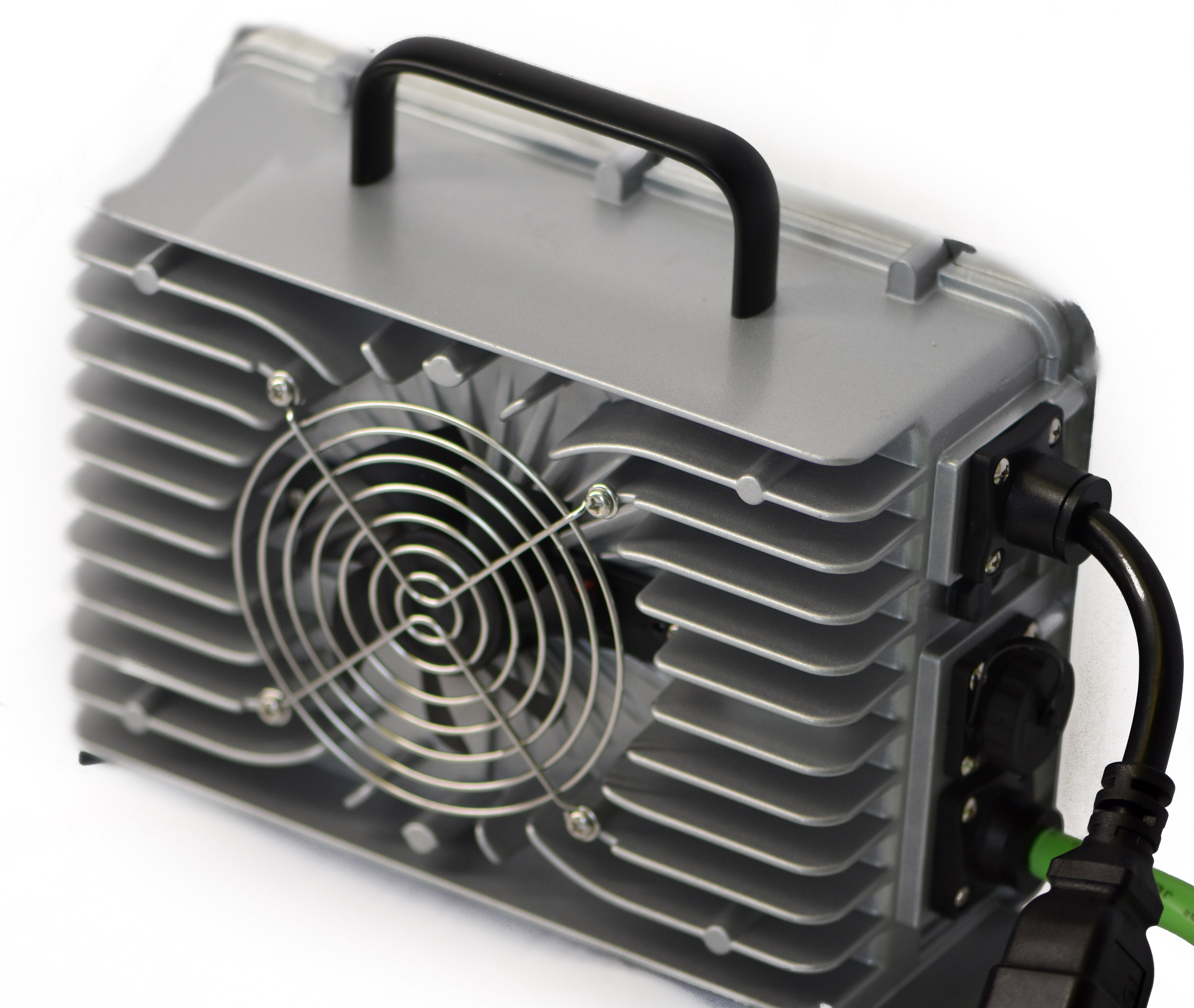

(1) 48V Battery Charger with Universal Connector
(1) State of Charge Meter for Dash Mount
(1) Cart Specific Battery Mounting Kit
- In stock and ships from ATLANTA, GA.
- Battery system must ship as freight, 1-6 day delivery within the USA.
- Local Pickup is available, select local pickup at checkout to arrange.
WARRANTY
We are an official distributor of RoyPow Lithium Battery Systems. Your battery purchase will be covered under a 5 YEAR WARRANTY. No registering required, simply save your sales receipt to activate your warranty.
FEATURES
-
Typical 30-50 Miles per charge
The average 18 hole round of golf is 6-8 miles.
-
Built-in protection functions
Multiple built-in protection functions to insure safety including over charge protection, over discharge protection, over heated protection and short circuit protection.
-
High Charging Efficiency and less power consumption
RoyPow LiFePO4 battery systems can be charged quickly in a short time. Full 30-50 mile charge will take 5 hours.
SWITCHING TO LITHIUM
-
Club Car Precedent Direct Replacement for Lead Acid Batteries
With the Roypow CLUB CAR PRECEDENT Kit, the process of upgrading from lead acid to lithium couldn't be easier. Custom fit installation brackets and a univeral charge plug are included with this kit.
-
EZGO Direct Replacement for Lead Acid Batteries
With the Roypow EZGO Kit, the process of upgrading from lead acid to lithium couldn't be easier. Custom fit installation brackets and a univeral charge plug are included with this kit.
-
Yamaha Direct Replacement for Lead Acid Batteries
With the Roypow YAMAHA Kit, the process of upgrading from lead acid to lithium couldn't be easier. Custom fit installation brackets and a Yamaha charge plug are included with this kit.
-
Universal Lithium Battery Upgrade Kit for Lead Acid Batteries
With the Roypow UNIVERSAL Kit, the process of upgrading from lead acid to lithium couldn't be easier. A universal charge plug is included with this kit.
Specifications:
| Manufacturer | RoyPow |
| Model | S51105 |
| Chemistry |
LiFePO4 |
| Configuration |
16S1P |
| Nominal Capacity | 100Ah |
| Continuous Discharge | 100A |
| Maximum Discharge | 200A (10 s) |
| Nominal Voltage | 51.2V (Cell 3.2V) |
| Max Voltage | 58.4V (Cell 3.65V) |
| Min Voltage | 40.0V (Cell 2.5V) |
| Protected | Yes, BMS V4.1 |
| Rechargeable | Yes |
| Approx. Dimensions | 18.11 x 13.15 x 9.13 IN |
| Approx. Weight | 96lbs |
| Country of Origin | China |
| Cycle Life |
3,500+ |
All batteries are certified in

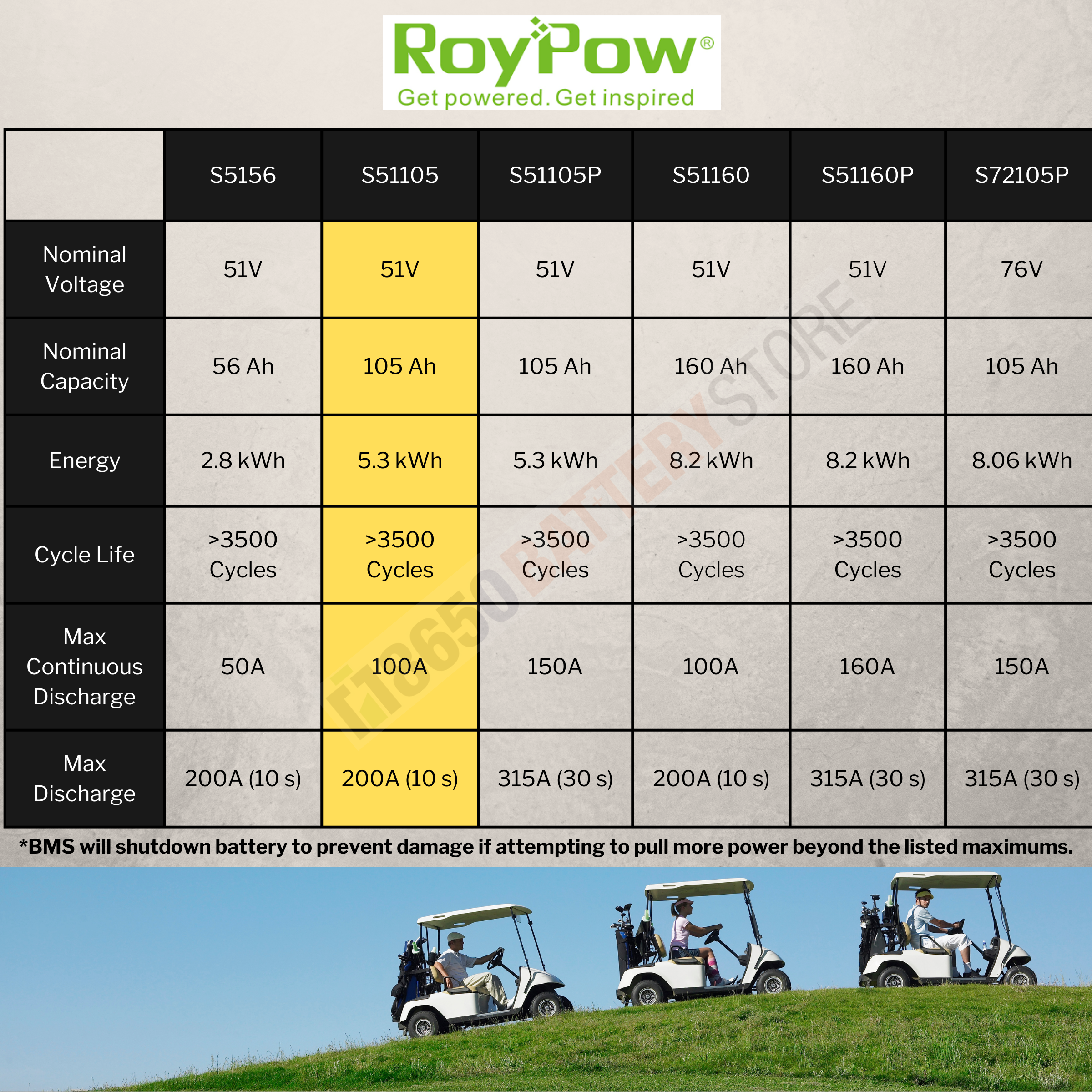

| S5156 | S51105 | S51105P | S51160 | S51160P |
|---|---|---|---|---|
| 51V | 51V | 51 V | 51 V | 51 V |
| 56 Ah | 100 Ah | 105 Ah | 160 Ah | 160 Ah |
| 2.86 kWh | 5.10 kWh | 5.37 kWh | 8.19 kWh | 8.19 kWh |
| >3,500 times | >3,500 times | >3,500 times | >3,500 times | >3,500 times |
| Max 3% | Max 3% | Max 3% | Max 3% | Max 3% |
| 460x334x247 mm | 460x334x247 mm | 565x330x255 mm | 800x360x232 mm | 800x320x232 mm |
| 73 lbs. (33 kg) | 95 lbs. (43.2 kg) | 103 lbs. (46.8 kg) | 159 lbs. (72 kg) | 165 lbs. (75 kg) |
| 35-48 km (20-30 miles) | 64-81 km (30-50 miles) | 64-81 km (40-50 miles) | 97-113 km (60-70 miles) | 97-113 km (60-70 miles) |
| 22 A | 22 A | 22 A | 22 A | 22 A |
| Discharge Current | ||||
| 50 A | 100 A | 150 A | 100 A | 160 A |
| 200 A (10 s) | 200 A (10 s) | 315 A (30 s) | 200 A (10 s) | 315 A (30 s) |
| Charging Time | ||||
| 2.5 h | 5.0 h | 5.0 h | 7.5 h | 7.5 h |
| Environment Temp. Range | ||||
| 32°F~131°F ( 0°C ~ 55°C) | ||||
| -4°F~131°F ( -20°C ~ 55°C) | ||||
| -4°F~113°F ( -20°C~45°C) | ||||
| 32°F~95°F ( 0°C~35°C) | ||||
| General | ||||
| 16S1P | 16S1P | 16S1P | 16S2P | 16S2P |
| LF50K (3.2 V 50 Ah) | LF105 (3.2 V 105 Ah) | LF105 (3.2 V 105 Ah) | LF80A (3.2 V 80 Ah) | LF80A (3.2 V 80 Ah) |
| Steel | Steel | Steel | Steel | Steel |
| IP67 | IP67 | IP67 | IP67 | IP67 |
Warranty Details
RoyPow (USA) Technology Co., Ltd. (“Manufacturer”) warranties each RoyPow® branded battery sold by RoyPow or any of its authorized distributors or dealers in the United States (“Battery”) to be free of defects in material and workmanship for a duration period of 5 years, after the date of purchase, as evidenced by the original receipt (the “Warranty Period”).
If your battery fails due to a defect during the Warranty Period, you may obtain a free relevant after-sales maintenance service.
Any replacement batteries or accessories you obtain under this Limited Warranty must be identical or reasonably equivalent to your original ones.
The warranty replacement value (item price on proof of purchase) will start from the date of purchase and subsequently decrease at a monthly rate of 1.67% until the end of year 5 is reached.
Lithium batteries under normal use will provide you over 10 years of maintenance free service! While lead acid will last just 3-5 years based on how well you maintain the batteries.
COMPARE 48V LITHIUM GOLF CART BATTERIES
Capacity = Runtime. There can be many different factors that determine how many miles you will get from your battery per charge.
For a standard 2 seat cart, you can expect the following mileage: 50Ah ~ 20 miles, 100Ah ~ 40 miles, 150Ah ~ 60 miles
*Cart weight and cruising speed as well as terrain can contribute to a lower mileage output per charge.
Max Continuous Discharge = The maximum power your battery can output continuously for the duration of the cycle.
100A is plenty of power for a standard model cart.
If you have a heavily modified or larger 6 seat cart (motor controller rated 240 Amps or higher), you may want to choose a battery with a higher continuous discharge. If you are unsure, please contact us prior to purchase!
*Attempting to run your battery at higher than rated discharge will cause the battery management system to go into timeout to prevent damage to the battery cells. This will cause it to shutdown completely for a short period of time.
Max Pulse Discharge = For those instances when you might need a little extra power like going up a steep incline.
