Description
Nitecore UM4 4 Bay Digital LCD Battery Charger
18650
20700
21700
Product Highlights:
- 4 Bay Charger
- Multiple Charging Speeds - 1.5A x 1, 1.0A x 2, 0.5A x 4 /// QC Mode - 1.5A x 1, 1.5A x 2, 0.75A x 4
- Comfortably fits size 20700 and 21700 batteries
- Bright digital LCD display shows real time charging information
- Built in safety protections to prevent short circuits, overcharging, and improperly inserted batteries
Package Contents:

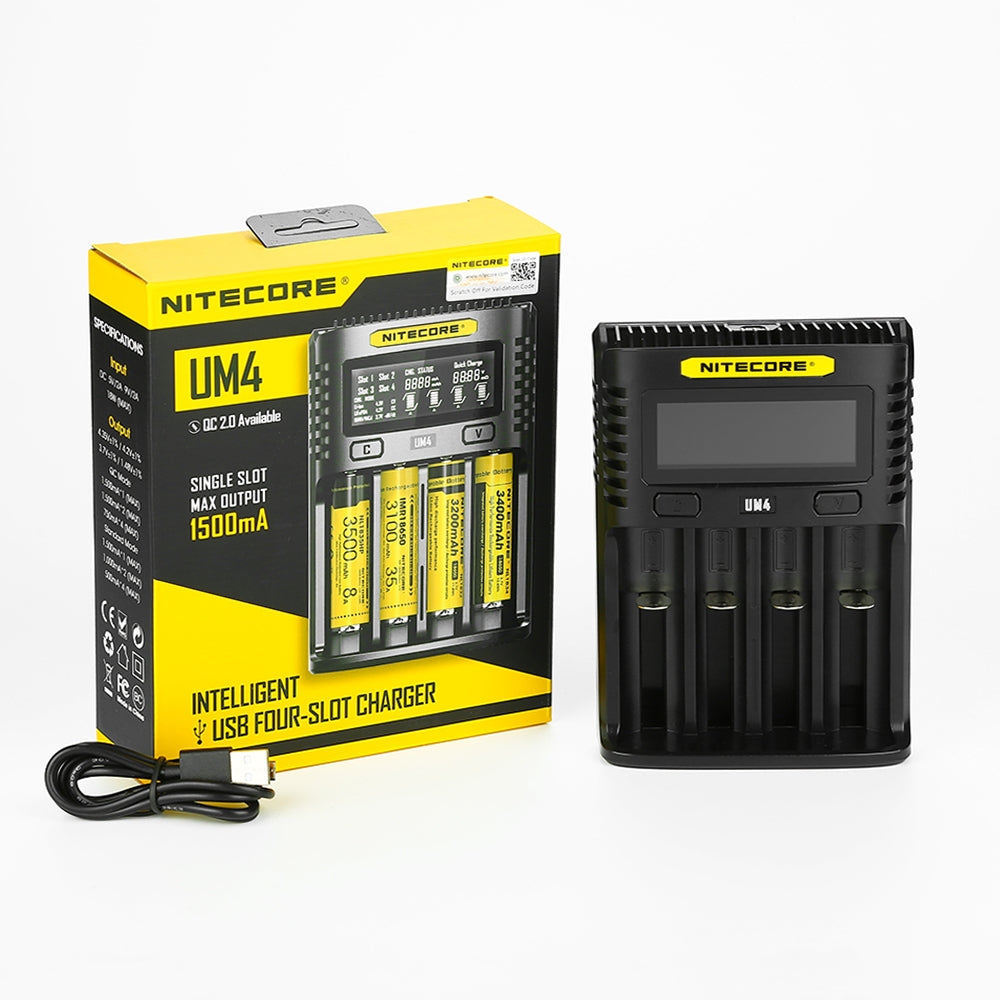

- Nitecore UM4 Battery Charger
- Standard USB Power Cord
- User Manual
Features:
- Intelligent USB 4 Slot Charger
- QC 2.0 input available
- Capable of charging 4 batteries simultaneously and controlling each slot independently
- Up to 1,500mA charging speed in a single slot
- Compatible with Li-ion and Ni-MH/Ni-Cd batteries with automatic detection
- Automatic detection of battery power level and automatic selection of the appropriate voltage and charging mode (LiFePO4 and 3.8V Li-ion batteries excluded)
- Automatic selection between 3 charging modes (CC, CV and dV/dt)
- Energy-efficient LCD display for real-time charging information
- Capable of manually selecting the charging cut-off voltage and the charging current
- Automatic detection of large/small capacity batteries and automatic selection of appropriate charging current
- Automatic termination upon charging completion
- Reverse polarity protection and short circuit protection
- Over-discharged battery activation
- Li-ion battery restoration
- Overtime charging protection
- Made from durable and fire-retardant PC materials
- Optimal heat dissipation design
- Certified by RoHS, CE, FCC and CEC
Specifications:
Dimensions: 159 x 107 x 41mm
Input: DC 5V/2A 9V/2A 18W (MAX)
Output: 4.35V±1% / 4.2V±1% / 3.7V±1%/1.48V±1%
QC Mode: 1500mA*1 (MAX), 1500mA*2 (MAX), 750mA*4(MAX)
Standard Mode: 1500mA*1 (MAX), 1000mA*2 (MAX), 500mA*4 (MAX)
Compatible with :
IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490,18500, 18650, 18700, 20700, 21700, 22500, 22650,25500, 26500, 26650, 26700
IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490,18500, 18650, 18700, 20700, 21700, 22500, 22650,25500, 26500, 26650, 26700
Ni-MH/Ni-Cd: AA, AAA, AAAA, C, D
