Description
Product Highlights:

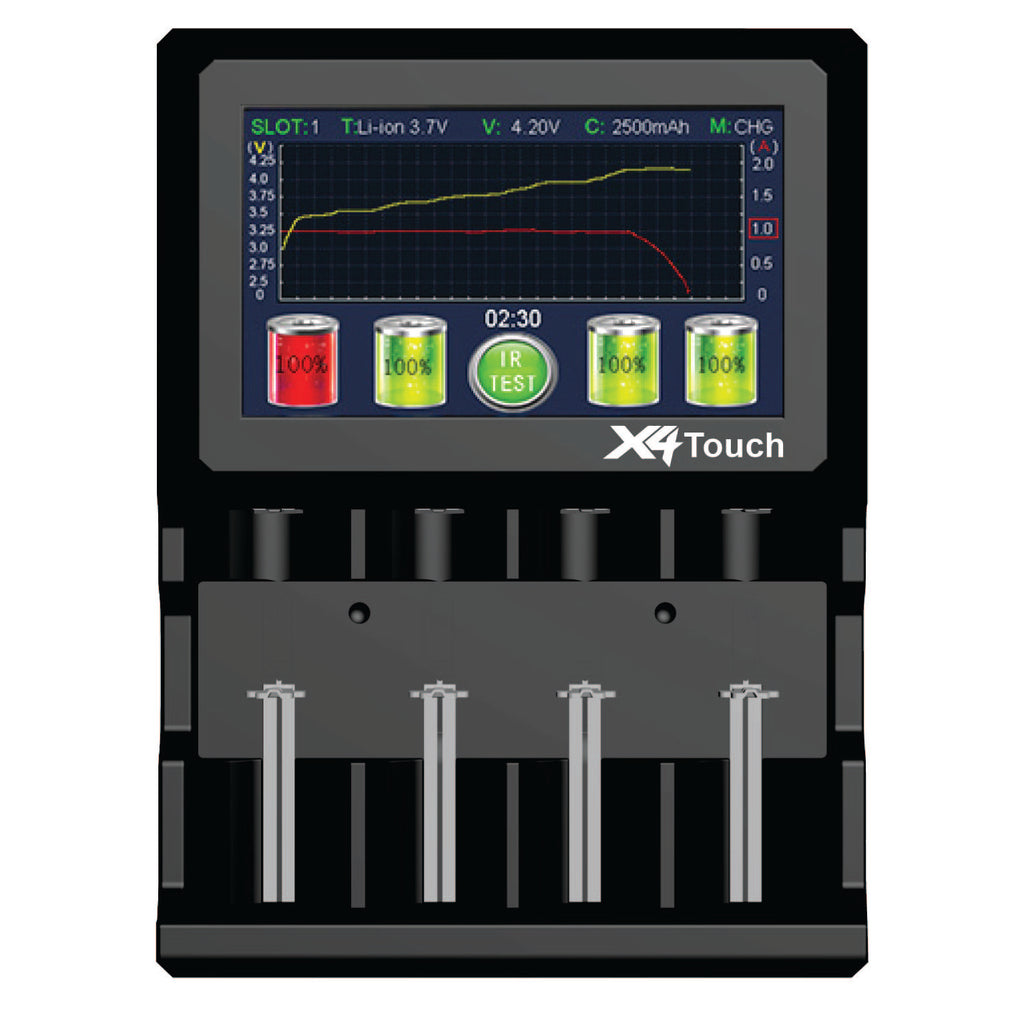

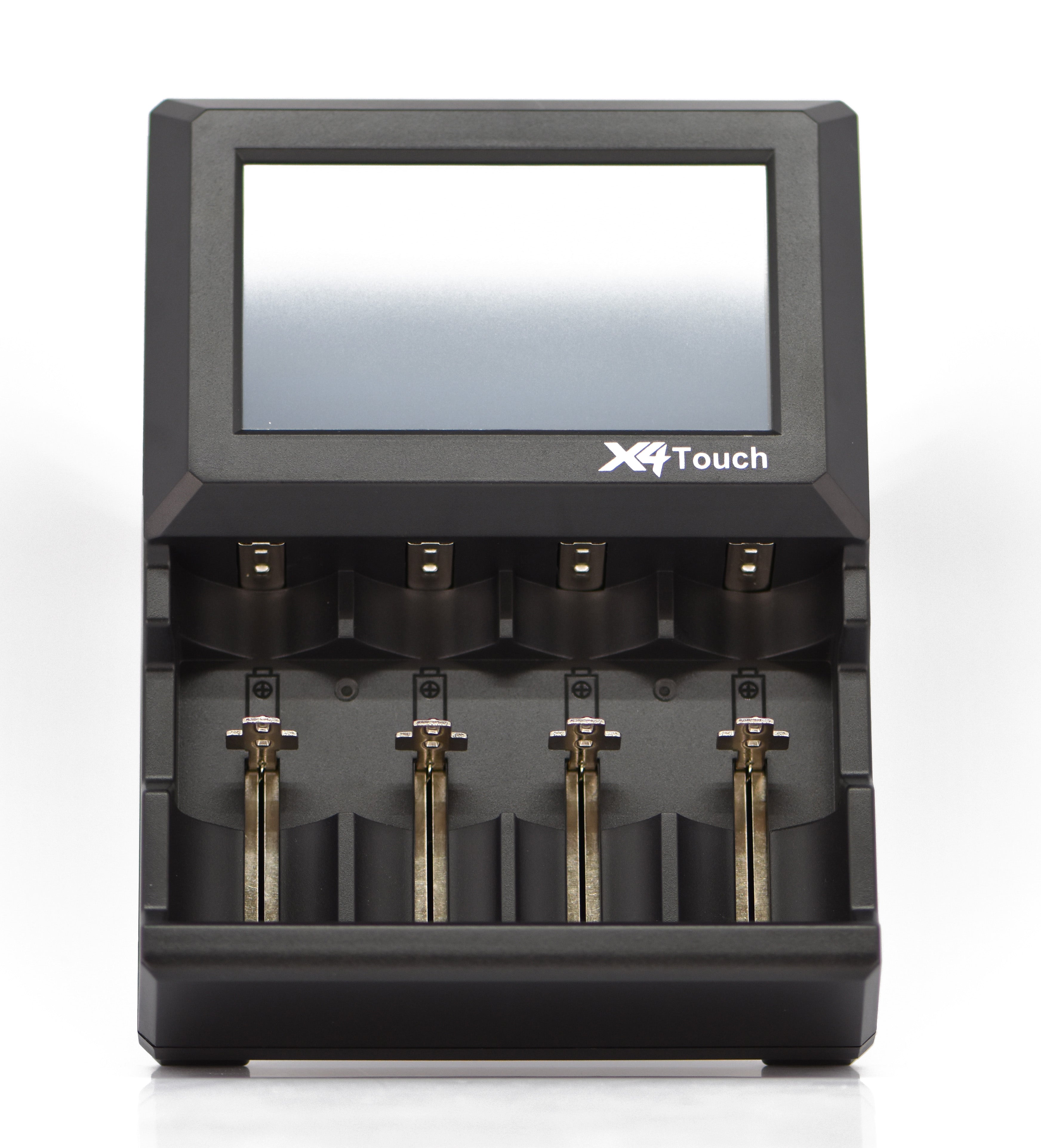

- 4 Bay Battery Charger
- Four charging speeds - .5A x 4, 1A x 4, 1.5A x 4 or 2A x 4

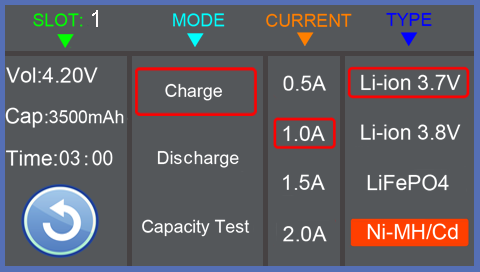

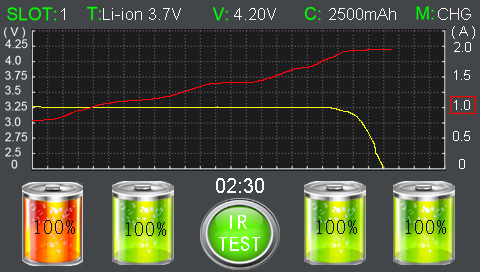

- Touch Screen LCD screen instantly shows charging progress, battery voltage, current, time, capacity, charge-discharge curve and display diagram of internal resistance testing
- Functions include charging, discharging, capacity testing and battery internal resistance testing
- Reverse polarity protection and short circuit protection

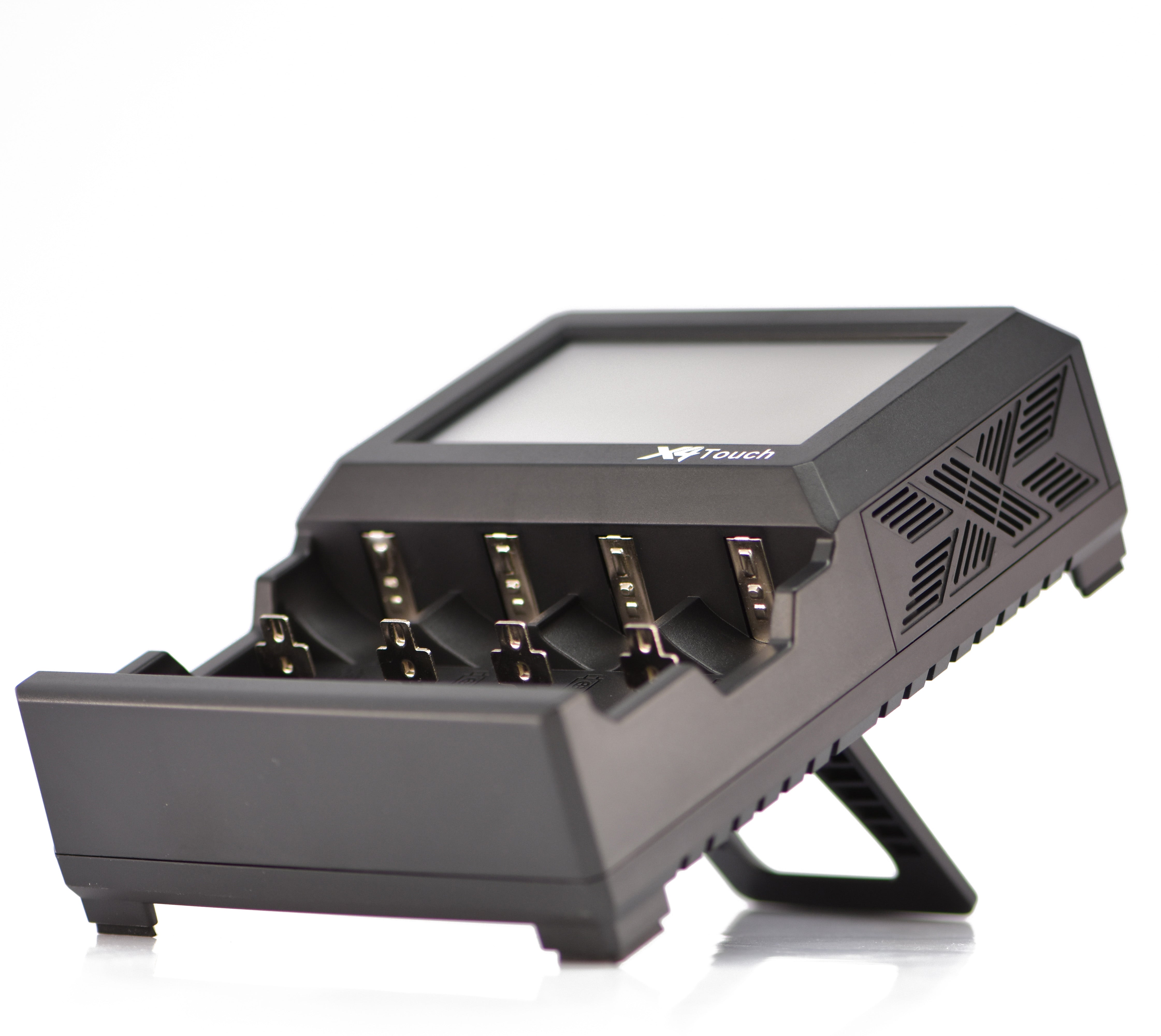

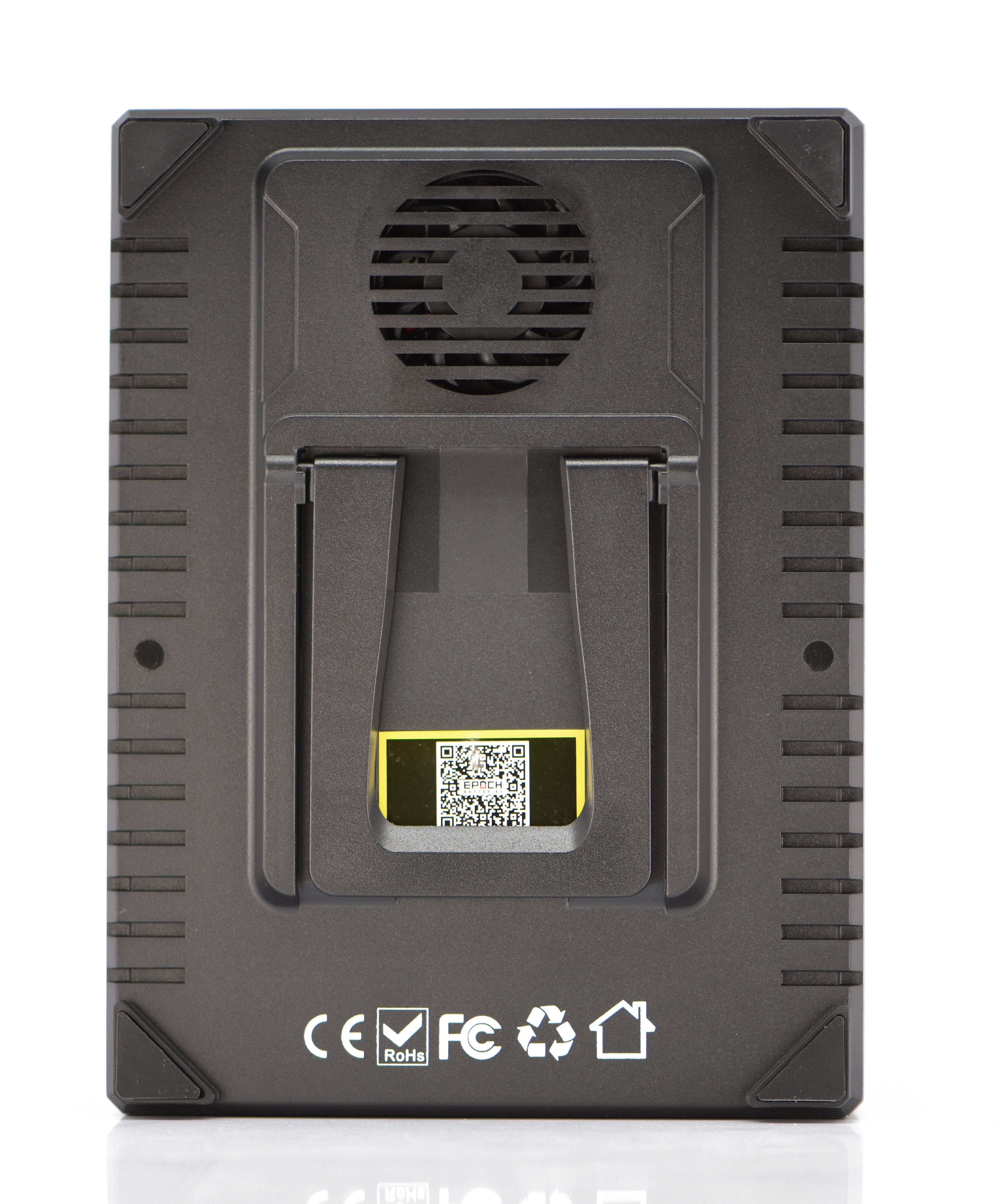

- Built in cooling fan with two temperature sensors
- Comfortably fits 20700 and 21700 batteries
Packaging Contents:
- Epoch X4 Touch Battery Charger

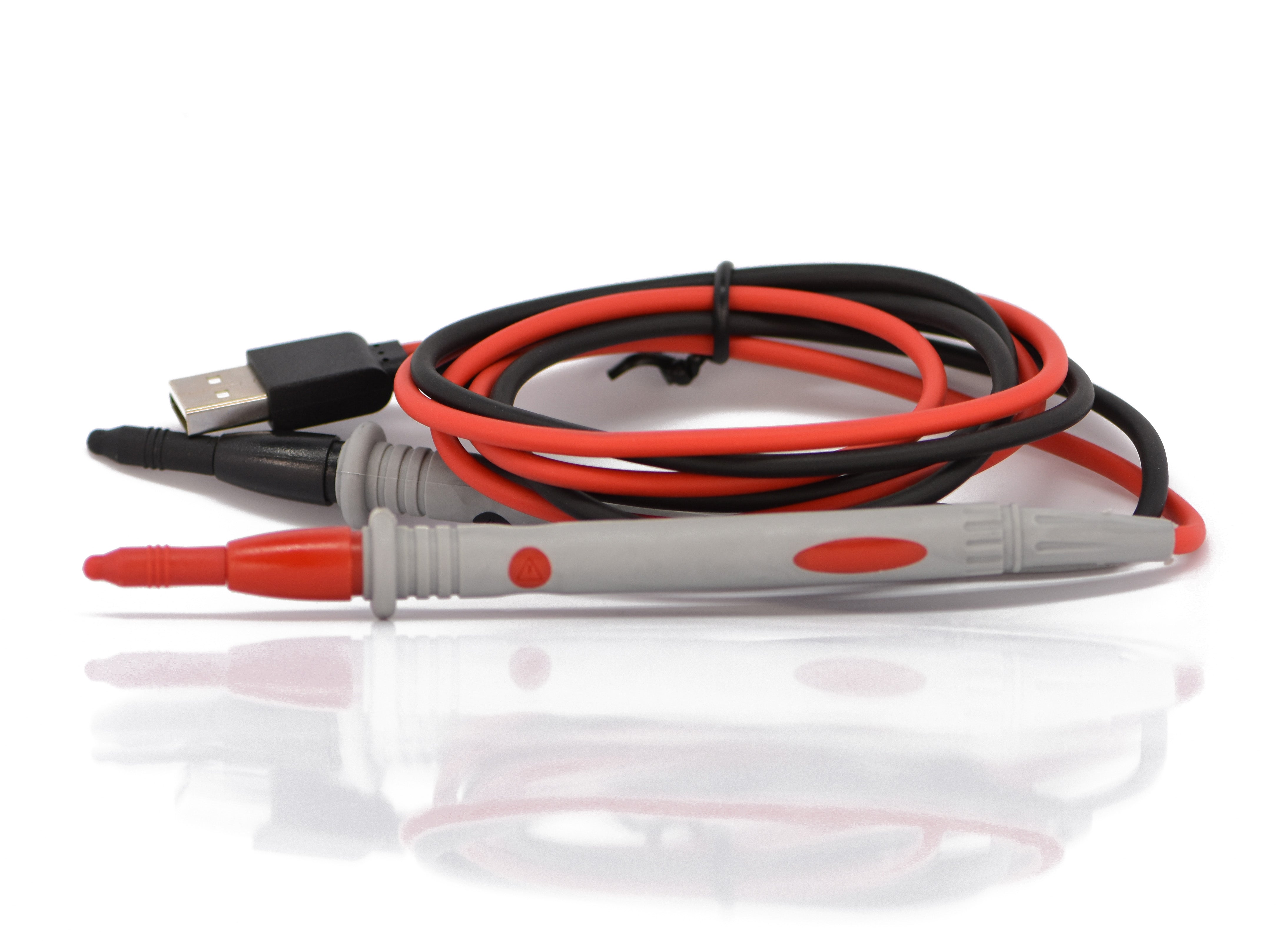

- USB Internal Resistance Testing Probes

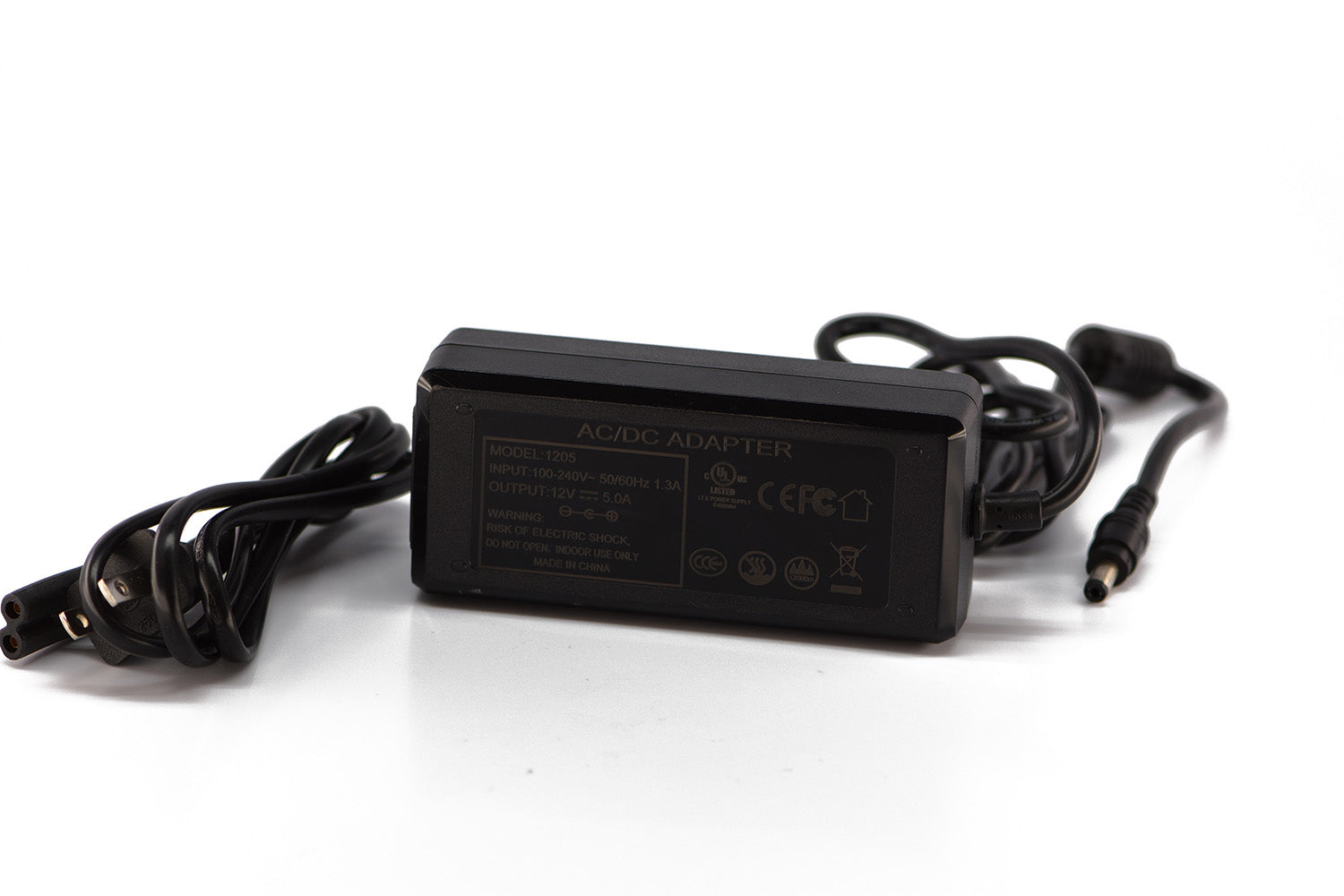

- AC/DC Adapter
- Charging Cable
- User Manual
Additional Features:
- Micro-programmed control unit, intelligent implementation of touch control, four slots operate independently and support the hybrid charging mode
- Using constant current, constant voltage charging mode
- Using DV control technology to reach higher charging efficiency
- Fit all rechargeable cylindrical battery of which diameter is below 32mm, height 34-73mm
- All discharge current is set to 0.5A
- Protection of opposite connection: corresponding battery slot will display "Battery Error" if battery placed reverse
- Protection from short circuit: corresponding battery slot shows "Battery Error" if battery short circuit detected
- Automatic activation function: automatically activate a "zero voltage" lithium battery
- Intelligent temperature control: built-in cooling fan will be according to the two temperature sensors, to detect machine internal temperature which rise to 60 degrees celsius automatically open, drop to 40 degrees celsius automatically stop, to ensure the charger works in good condition.
Specifications:
Input: AC 100-240V 50/60 Hz
Output: 12V 5A
CE and RoHS
Compatible with:
Li-ion / IMR / LiFePO4:
10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500,18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650
Ni-MH / NiCd:
AA, AAA, AAAA, C, D
