Description
SOK Battery 100Ah 48v Cycle-Life-Test-100ah
SOK Tools (PC Software)
SOK Protocol Editor (PC Software)
FREE SOK SERVER RACK STAND INCLUDED WITH PURCHASE OF 4 OR MORE UNITS
SOK Battery 100Ah 48v Features:
- 48 Volt (51.2 Nominal) 100Ah, 5.12 kWh
- UL1973 Certified by Intertek Laboratories
- 20 Year Typical Lifespan & 10 Year Warranty
- Cells rated for 80% Capacity after 4000 Cycles, 100% DOD @1C Rate
- Typical capacity at 80% DOD @.5C Rate is over 7000 Cycles
- Maintenance Free
- Built-In Smart Battery Management System (BMS)
- 5 Temperature sensors, protected from low and high temperatures
- Pre-Charge Circuit to Prevent BMS Damage
- Detachable cover, user serviceable BMS and cells
- RS485 & CANBus communication, works with many inverters

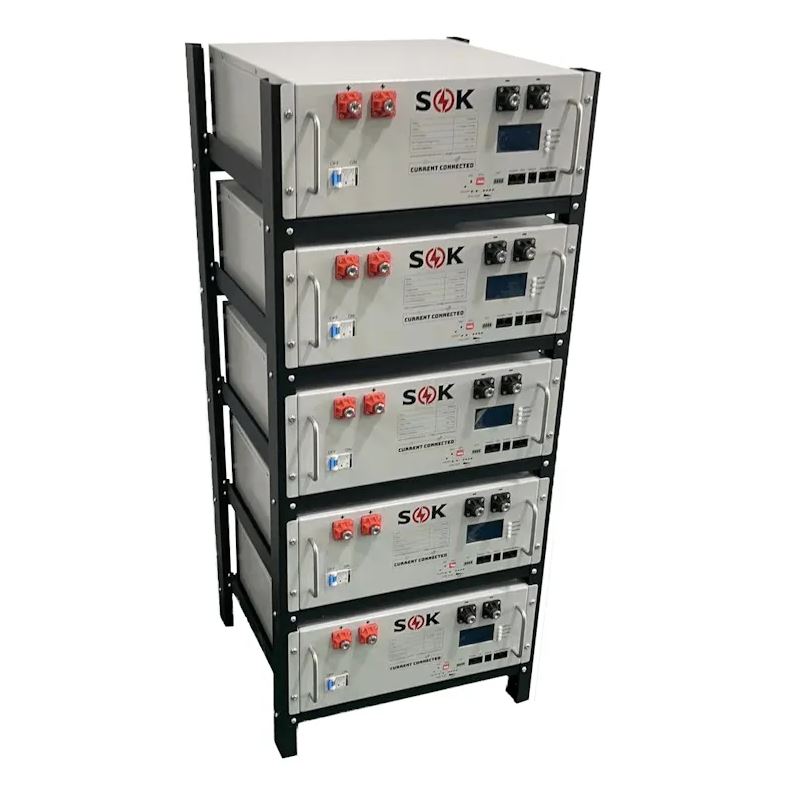

- Rack Mountable for quick and easy installation
SK48V100 Electrical Properties
- Model: SK48V100
- Nominal Voltage: 51.2 (48v Range)
- Nominal Capacity: 100Ah
- Run Time at 20A Load (~1000w): 300 Minutes
- Energy: 5120Wh
- Self Discharge: < 3% per month
- Max Batteries in Series: 1
- Max Batteries in Parallel (with BMS communication): 16*
SK48V100 Discharge Performance
- Max Continuous Discharge Current: 100A (1C)
- Peak Discharge Current: 200A (3 Seconds, automatic shutdown)
- BMS Low-Voltage Disconnect: 42V
- BMS Low-Voltage recover: 46V
SK48V100 Charge Performance
- Recommended Charge Current: 0~63A
- Maximum Charge Current (Continuous): 100A
- Recommended Charge (Absorption) Voltage: 58.2V
- BMS Cell Protection Voltage: 3.7V
- BMS Pack Protection Voltage: >58.2V
SK48V100 Temperature Performance
- Discharge Temperature: -4°F – 140°F
- Charge Temperature: 32°F – 113°F
- Storage Temperature: 23°F – 95°F
- Low Temperature Charge Protection: Yes
- Internal Temperature Sensors: 4 Cell Sensors, 1 BMS Sensor, 1 Ambient Air Sensor
SK48V100 Physical Properties
- Case Material: Powder-Coated Steel
- Rack Mountable: Yes, 4U
- Unit Weight: 99.2Lbs
- Weather Rating: IP20
- Third Party Testing: UL1642 & UL9540 testing in progress. Anticipated September 2022, UL1973 (Cells)
- Shipping Classification: UN3480, Class 9, MSDS
SK48V100 Dimensions
- Width: 17.5in
- Height: 7in
- Depth: 18in
